    15W COB LED Downlight

    Ask Lasest Price
    Brand Name : EWIN
    Certification : CE ROHS
    Model Number : EW-DL-15W-COB
    Delivery Time : usually 7-10 working days
    Payment Terms : T/T, Western Union
    Price : US $ 8-30/ Piece
    Supply Ability : 50,000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    15W COB LED Downlight

    15W COB LED Downlight

    Products Features:
    (1)LED Power: 15W.
    (2)Lamp Consumption:17W.
    (3)Output: 1400-1500lm.
    (4)Input voltage:100-270v AC, 50-60hz
    (5)Beam Angle:30°/60°
    (6)CRI:> 80.
    (7)Working Temperature:-40℃-45℃.
    (8)Storage Temperature: -25℃-65℃.
    (9)Color of housing: white, black, silver.
    (10)Life span: 50,000+hrs.
    (11)Certificate: CE/RoHS/SASO
    (12)Warranty: 3 years.

    COB Parameter:
    (1)PCB: Ceramic.
    (2)Chip Brand: Epistar 10*23.
    (3)Output: 1400-1600lm.
    (4)Chip Qty: 250 pcs.
    (5)CRI> 82.
    (6)Voltage:30-36vDC
    (7)Current: 500-600mA.


    Driver Parameter:
    (1)Brand: Lifud (LED Friend).
    (2)Input:100-277v AC.
    (3)Output: 27-42vDC, 500mA.
    (4)Power effect: 0.9-0.97.
    (5)Power Efficiency: 85%
    (6)Certificate:CE/TUV/UL/CQC/SAA

    Dimmable: Triac or Dali is available.
    Meanwell PLD-16-350 is optional.

    Product Datasheet:


    Part No.ColorCCTOutput
    EW-CL-COB-15W-WWwarm white2900-3200k1350-1400lm
    EW-CL-COB-15W-NWnatural white4000-4500k1400-1450lm
    EW-CL-COB-15W-CWcool white5900-6300k1450-1500lm

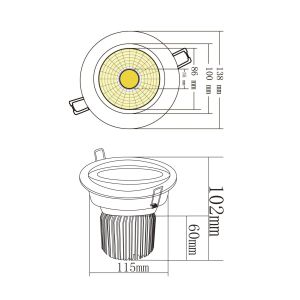

    Dimension:






    IES Test:(please contact us to get the IES file)


    Packing:



    More Pictures:
